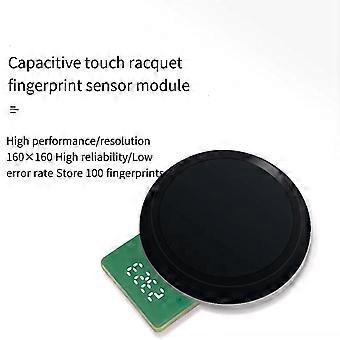

Capacitive Touch Type, Racket-Shaped Fingerprint Sensing Module, High-Performance Model/Resolution 160x160, High Reliability/Low False Recognition Rate, Can Store 100 Fingerprints Zw0642 Is A Capacitive Fingerprint Recognition Module, Consisting Of An Active Semiconductor Fingerprint Collection Sensor And A Fingerprint Recognition Processing Chip. Supports Functions Such As Fingerprint Image Processing, Template Extraction, Template Matching, Fingerprint Search And Template Storage. The Product Structure Is Simple And Highly Integrated, Which Improves Product Stability And Consistency. The Interface Supports Uart, The Default Baud Rate Is 57600bps, 1 Start Bit, 8 Data Bits, No Parity Bit, 1 Stop Bit, 3.3vttl Level. Suitable For Multiple Scenarios Such As Access Control And Attendance, Fingerprint Verification, Intelligent Security, Financial Verification, And Identity Recognition. Description: 1.Module Size: Diameter About 14.0mm 2. Functional Area: 8 x 8mm 3. Resolution: 160 x 160 Pixel 508Dpi 4. Interface Protocol: Ttl Serial Port 5. Communication Baud Rate: Default Baud Rate 57600bps/1 Start Bit/1 Stop Bit 3.3v Ttl Level 6. Interface And Line Sequence: 1.0mmx6pin Horizontal Patch 7. Fingerprint Library Capacity: 100 Pieces 8. Storage Temperature And Humidity: -40c~+85c; 45%~95%Rh 9. Working Temperature And Humidity: -30c~+70c;45%~85%Rh 10. False Recognition Rate: Less than 0.001% 11.Rejection Rate: Less than =3% 12.Comparison : 1: N 13. Standby Current: ~10uA 14. Operating Current (Algorithm Mcu): -25mA 15. Picture Acquisition Time: ~155ms 16. Time To Generate Eigenvalues: -220ms 17.Comparison Time:~180ms 18. Power On And Start:-100ms 19.Esd Level: Non-Contact Discharge ~15kv/Contact Discharge ~8kv Set: B Fingerprint Module+Terminal Line Material: PCB colour: As shown Package Contents: 1 x Fingerprint Module 1 x Terminal Line Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
