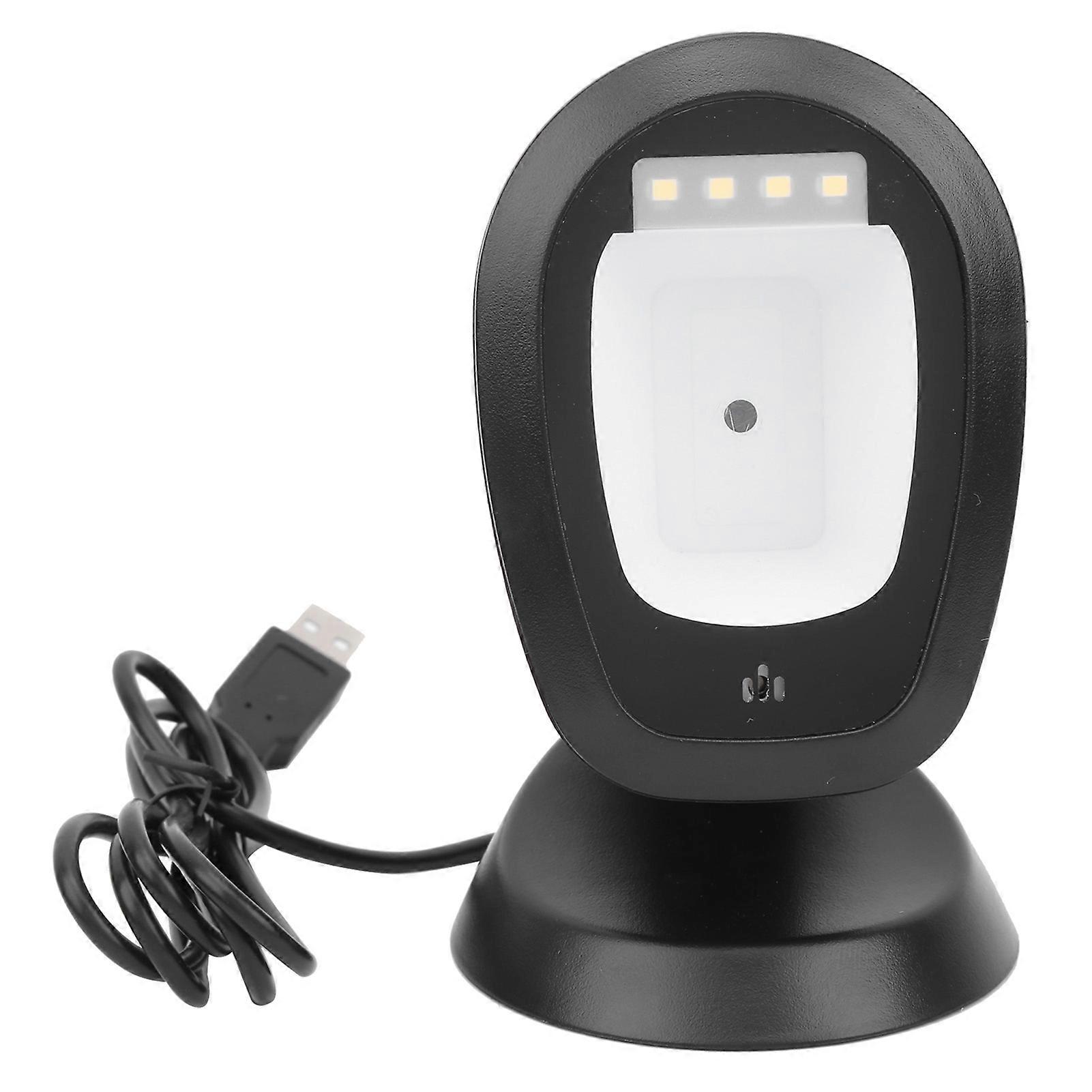

Condition: 100% Brand New Item Type: Barcode Scanner Material: Plastic Color: Black Model: SC-7110-2D Image Sensor: CMOS Wide VGA: 752 x 480 pixels Light Source: Red LED650nm±10％ 2D: PDF417, OR Code(Model 1/2, Micro), Data Matix (ECC200, ECC000,050,080,100,140) 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPCE, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar. Resolution: ≥3mil Depth of Field: EAN13(13mil): Approx. 55mm-320mm / 2.17in-12.6in PDF417(6.67mil): Approx. 70mm-155mm /2.76in-6.10in Data Matfix(10mi): Approx. 55mm-175mm /2.17in-6.89in QR Code(15mil): Approx. 40mm-160mm /1.57in-3.30in Print Contrast Ratio: ≥20% Reading Angle: Roll: 360°, Pitch: ±50°, Skew: ±50° Field of View: Horizontal: 36°, Vertical: 23° Mechanical/Electrical Interface: Keyboard Wedge, RS-232, USB(HID or V-COM), PS/2 Working Voltage: 5VDC±10% Current: 5V DC Operating: 130mA Standby: 20mA Environmental: Operating Temperature: 20℃ - +60℃ Storage Temperture: -40℃ - +80℃ Humidity: 5%-95%(No-Condensing) Ambient Light: 0-100,000 Lx(Nature Light) ESD: ±9KV(Contact Discharge), t15 KV(Air Discharge) Reading Skills 1. To obtain a good reading effect, the barcode and QR code should be placed in the middle of the scanning window for easy reading. 2. If the barcode is small, the scanner should be as close to the barcode as possible; if the barcode is large, the scanner should be farther away from the barcode, so that it is easier to read the barcode correctly. 3. The bar code is highly reflective (for example, coated), you may need to tilt the scanner at a certain angle to successfully scan the bar code. 1、Desktop two?dimensional small platform, can scan paper and screen 1D and 2D codes, very convenient. 2、The scanner provides accurate, easy?to?use and fast data entry solutions for computer information systems. 3、This scanner is suitable for manual hardware configuration. The scanner can provide interfaces: Keyboard wedge, RS?232, USB (for HID or V?COM), PS/2 4、All the parameters of the scanner can be completed by a specific setting code, and can be saved in the storage memory, the settings will be retained after the power is turned off. 5、Widely used in supermarket retail, warehouse inventory, express logistics, pharmaceutical industry, clothing industry, catering industry, transportation industry and so on. 1 x Barcode Scanner
